PEC Medical 72-Inch Ducted Fume Hood

₦2,650,000

Description

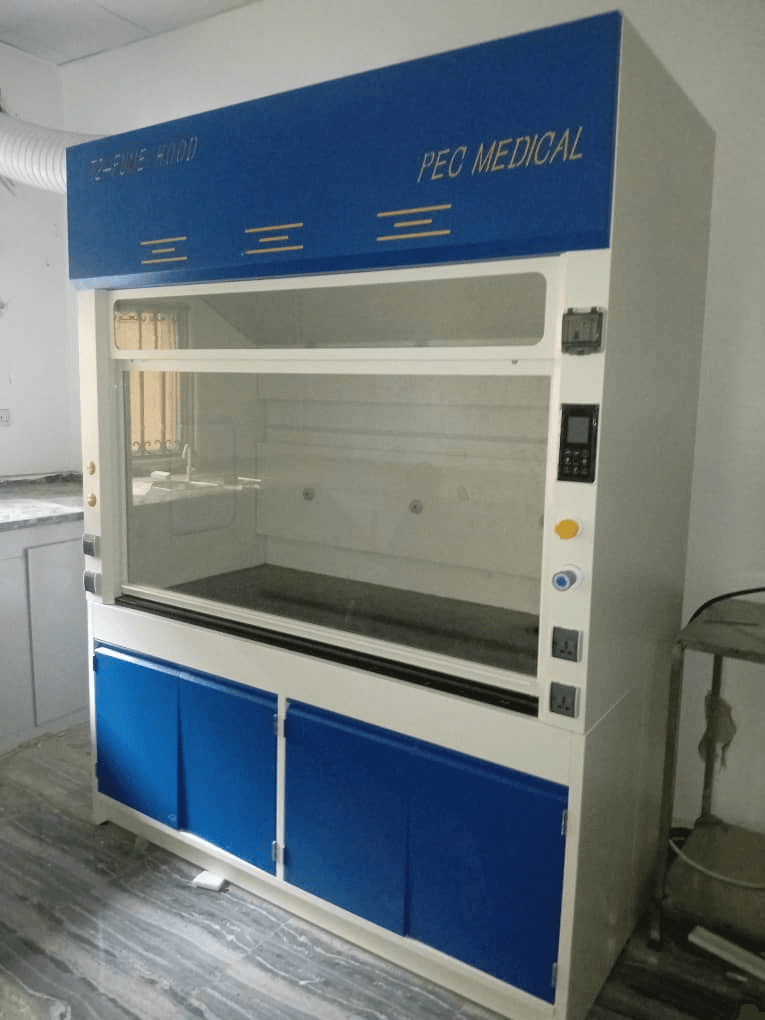

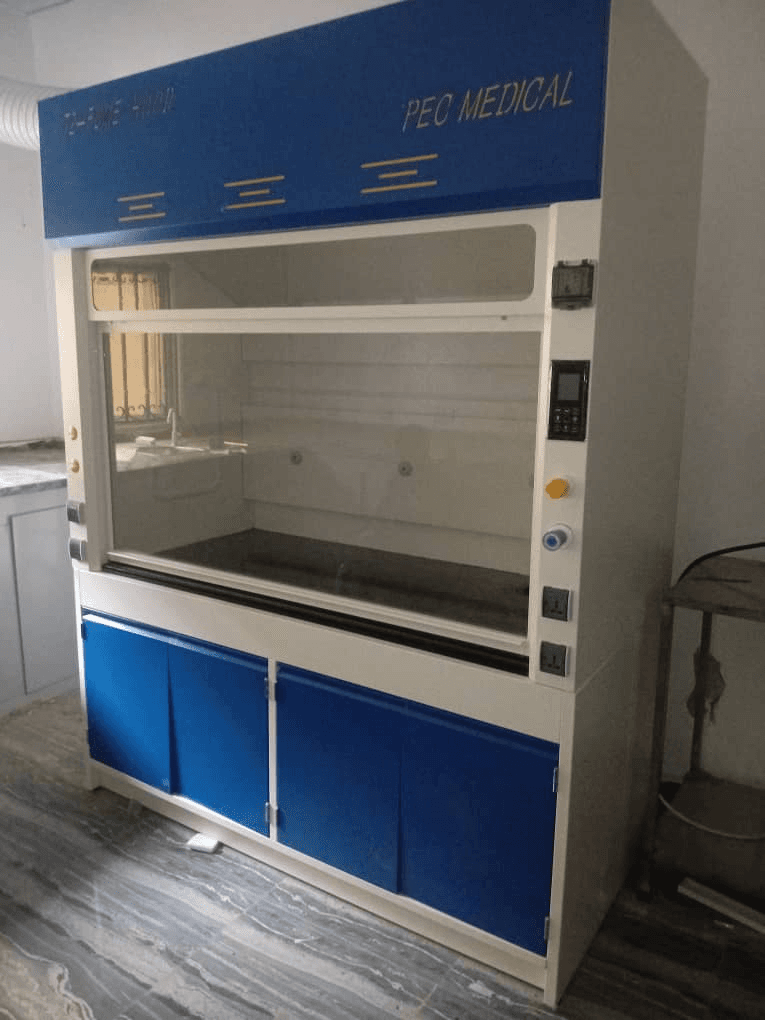

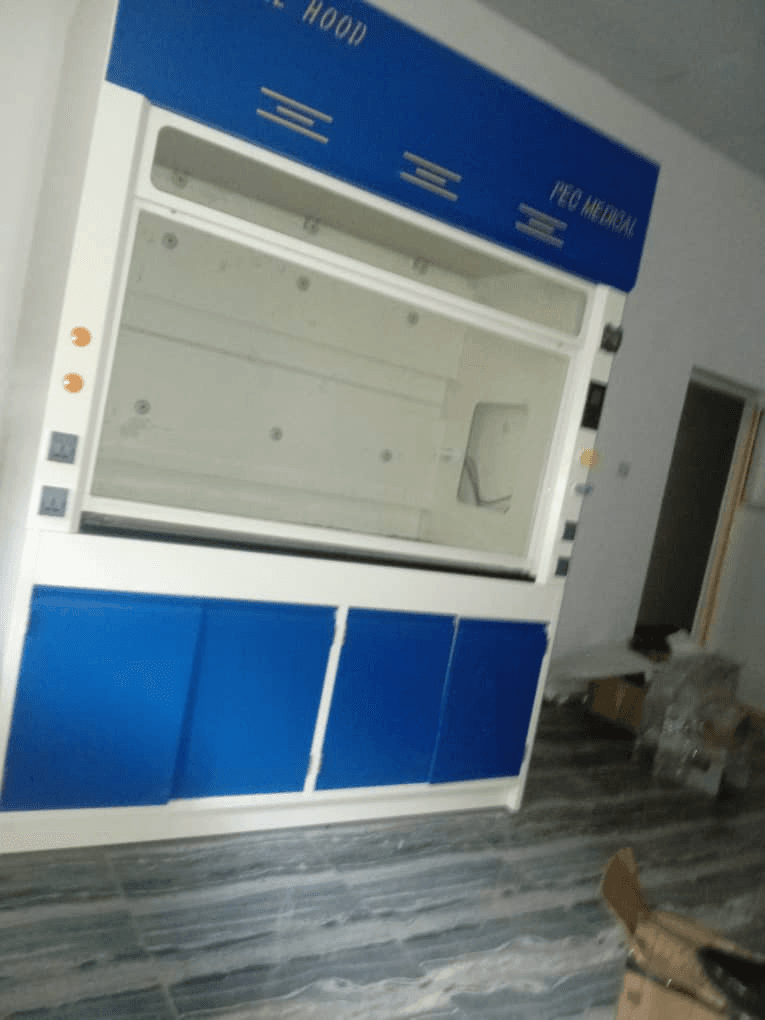

This is a PEC Medical 72-Inch Ducted Fume Hood, commonly known as a Laboratory Fume Cupboard. It is a large, permanently installed laboratory ventilation system designed to protect laboratory personnel by capturing, containing, and safely exhausting hazardous chemical fumes, toxic vapours, airborne particulates, and volatile gases generated during laboratory operations. Key Features and Functions 72-Inch Chemical-Resistant Work Chamber: Features a spacious interior workspace constructed from durable, chemical-resistant materials. The chamber incorporates an aerodynamic rear baffle system that promotes uniform airflow throughout the enclosure, preventing stagnant air pockets and ensuring efficient removal of hazardous contaminants. Ducted Exhaust Ventilation System: Designed to connect directly to a building's external exhaust ductwork or a dedicated roof-mounted extraction fan. During operation, laboratory air is drawn through the front opening and contaminated air is safely discharged outside the building, reducing exposure to hazardous substances. Counterbalanced Sliding Glass Sash: Equipped with a vertically adjustable tempered glass sash that serves as both an access window and a protective barrier. The sash allows users to regulate the working opening while providing protection against chemical splashes, accidental reactions, and minor laboratory explosions. Integrated Utility Services and Control Panel: Incorporates built-in electrical outlets, service fixtures for utilities such as water, gas, and vacuum, together with a digital control panel used to monitor airflow performance, face velocity, lighting, and ventilation system operation. Heavy-Duty Base Storage Cabinet: Supported by a double-door lower cabinet that provides structural stability and convenient storage space for compatible laboratory equipment, accessories, and approved chemical containers. Laboratory Lighting System: Fitted with an internal chemical-resistant lighting unit that provides clear illumination of the work area without interfering with airflow or exposing electrical components to hazardous vapours. Common Laboratory Applications Conducting chemical reactions that release toxic gases, corrosive vapours, or unpleasant odours. Handling volatile organic solvents, concentrated acids, alkalis, and other hazardous chemicals. Performing sample preparation, reagent mixing, and analytical procedures requiring effective local exhaust ventilation. Supporting research, pharmaceutical, industrial, educational, environmental, and clinical laboratory operations where operator safety is essential.
